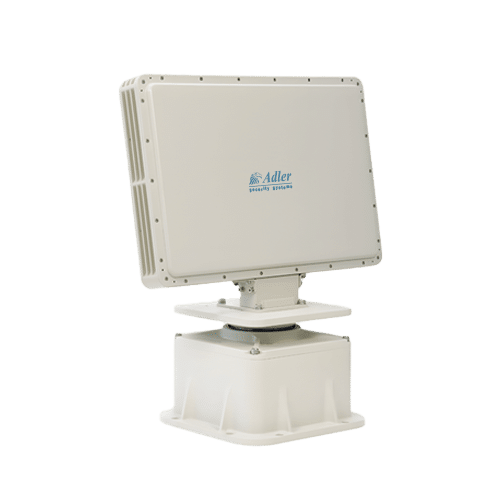

AD-RG-S216-8

Ground Surveillance Radar
Smart Detection & Tracking
Rapid and flexible beam scanning
Azimuth phase sweep + Pulse Doppler
Working frequency S band (2.9GHz/ 5 frequency points
Detection range 8km (Pedestrians)
Detection Rage 15km (Vehicles)
Minimum detection range ≤100m
Azimuth coverage Single panel 90°/ 360° with PTZ
Multi – planar array splicing, to 360°
Elevation coverage 18°
Distance accuracy ≤10m
Azimuth Accuracy ≤1.0°
Target detection speed 0.5m/s – 45m/s
Speed precision ≤0.2m/s
Data rate ≤1.5s
Net weight 26kg (Panel) , 45kg (Panel+PTZ+Box)
Power supply AC220V/DC12V/50W
Interface Ethernet: Ethernet (UDP protocol) / RJ45
Ideal for Airports, military bases, border security
