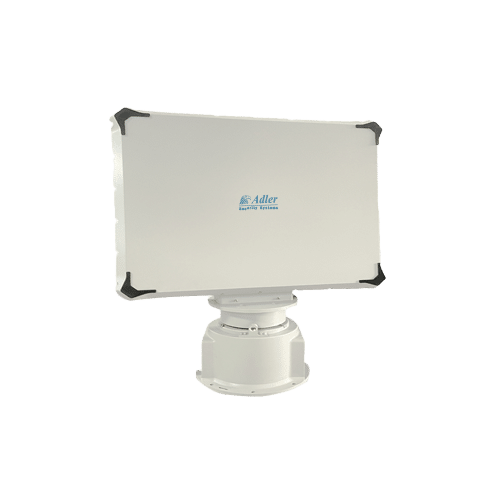

AD-RA-C223-1.5

Air Surveillance Radar
Phased array system
Azimuth machine scanning + pitch phase scanning
Working Frequency C Band
Detection range 100m – 1.5km (Drones RCS≈0.01m2)
Azimuth coverage 0 – 360°
Elevation coverage 0~40°
Detection speed 0.5 – 25m/s
Azimuth accuracy & Elevation accuracy ≤1.0°
Distance accuracy ≤10m
Data rate 0.2s
Data interface RJ45/1-way 100 Gigabyte Ethernet
Power supply 100W (Power consumption)
Working temperature -40 – 55℃
High-Accuracy Detection
All weather Operation
Ideal for Airports, military bases, border security, and high-risk locations
